Factory Windows
Factory Windows
22 January 2009 & Updated 19 November 2009

The new factory window layout for Art2Part ® Gallery...
Art2Part ® Gallery
2035 Delmar Boulevard
Saint Louis, MO  63103
314-621-1492
www.art2part.org
Art Gallery Lobby Accessible
Entrance with Patio Light from Light
over Addition Door (not Shown)
Art2Part Gallery Windows:
  • Retro factory look.
  • The new aluminum window panels are comprised of a single section of insulated glass with mullion inserts.
  • Main window panels to be three (3) panes high by four (4) panes wide.
  • The original panes are unconventionally wider than higher.  Further, the original design conjures images of jail
    cell bars, keeping viewers from looking in; the retro factory look windows show off the interior space better and
    are more inviting.
  • The 5’ 1 ½”W x 8’ 3”H east window facing the parking lot, currently blocked with CMUs, will be standardized to
    a 5’ 1 ½”W x 5’ 7”H window unit in harmony with the other windows on that wall.

Window Specifications for 10,000 s.f. Main Building:
  • Building walls are of concrete masonry unit (CMU) construction, 12” thick (concrete blocks)
  • Original windows facing Delmar Blvd measure 5’ 2”H x 4’ 4”W inside, 5’ 3”H x 4’ 4 ¾” W outside (with ½”
    outside lip).  A 2” spacer strip joined sections
  • See drawings (below) for windows with screened opening panels (awning style)
  • Color is black
  • Windows need UV protection.  “Natural light is an extremely intense source of energy and contains high levels
    of ultra-violet (UV) radiation. Most artworks are composed of organic materials making them especially
    vulnerable to UV wavelengths, the most damaging component of the light spectrum.”  (Source:  http://www.
    aucklandartgallery.govt.nz/services/conservation/caringforworks.asp)

R.O. Height    R.O. Width         Quantity    Grid                Comments
5’ 3”                 4’ 4 ¾”                2                3H x 4W         1 Unit Nominal 5’ 2” x 4’ 4”
5’ 3”                13’ 4”                   2                3H x 4W         3 Units Nominal 5’ 2” x 4’ 4” per unit + spacers
5’ 3”                8’ 11”                   1                3H x 4W         2 Units Nominal 5’ 2” x 4’ 4” per unit + spacer
5’ 7”                5’ 1 ½”                 5                3H x 4W         1 Unit R.O. 5’ 7” x 5’ 1 ½”
5’ 7”                10’ 5 ½”               1                3H x 4W         2 Units R.O. 5’ 7” x 5’ 1 ½” + spacer
1’                     4’                          3                1H x 2W         3 Units R.O. 1’ x 4’ opening inward

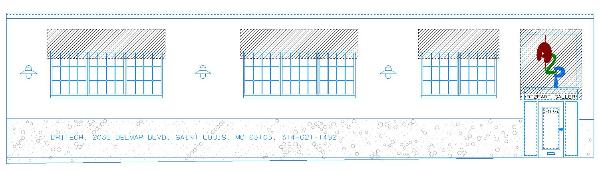

Delmar Blvd Wall (Street Front) Facing South-1' 7 1/16"H x 11 15/16"W Panes in 3H x 4W Grids

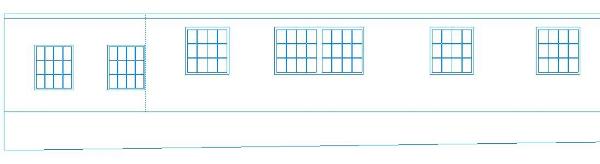

Parking Lot Wall Facing East-1' 7 9/16"H x 1' 1 9/16"W Panes in 3H x 4W Grids (Standardize 8’ 3”H window to 5’ 7”)

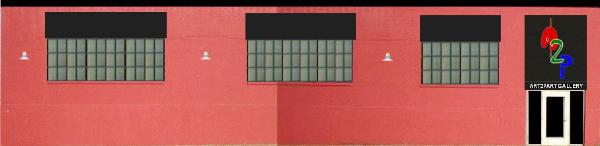

Delmar Blvd Wall (Street Front) Facing South-Artist's Rendition

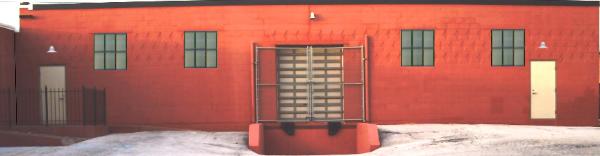

Addition Factory Windows-Loading Dock-1' 10 3/16"H x 1' 2 9/16"W Panes in 2H x 3W Grids-Artist's Rendition

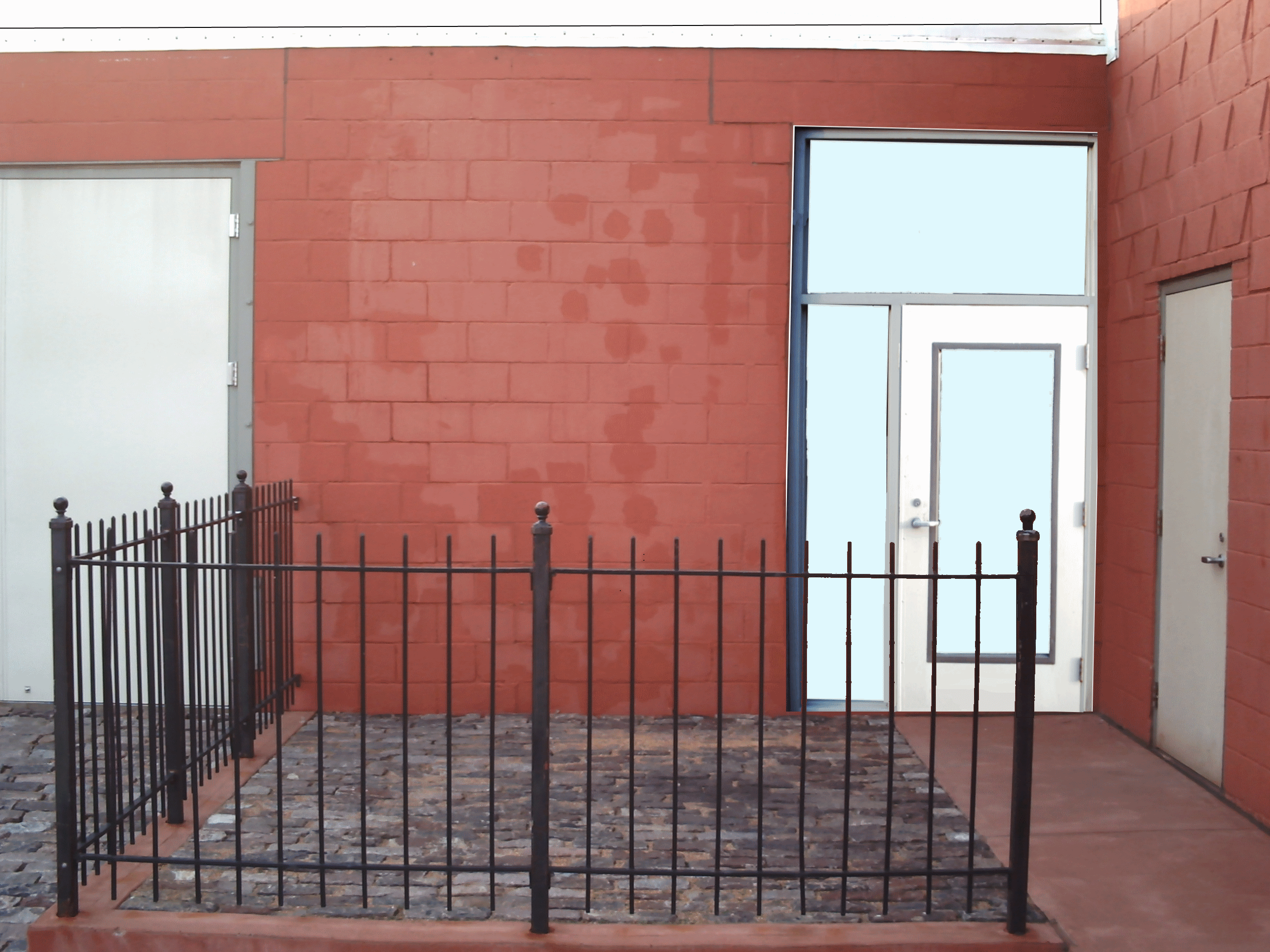

Art Gallery Lobby Accessible
Entrance with Patio Light from Light
over Addition Door (not Shown)
Addition Factory Windows-Loading Dock-1' 10 3/16"H x 1' 2 9/16"W Panes in 2H x 3W Grids
21st St. Wall Facing West-1' 7 9/16"H x 1' 1 9/16"W Panes in 3H x 4W Grids
Addition Factory Windows-Alley-1' 1 3/16"H x 1' 1 11/16"W Panes in 2H x 3W Grids
  • Building walls are of concrete masonry unit (CMU) construction, 12” thick (concrete blocks)

R.O. Height    R.O. Width         Quantity    Grid                Comments
4’ 1”                4’ 1”                      4                2H x 3W         Non-operating window unit facing south (parking lot)
2’ 8”                3’ 9”                      2                2H x 3W         Non-operating window unit facing north (alley)
